Galvanized horse fence is made with round, square, and oval pipe

Our horse fence panel, made of high quality galvanized square, round and oval pipe is ideal for protecting horse. It has 3-7 rails to support the fence and each rails has different spacing to prevent horse hooves and feet from catching in the fence. It can be used at ranch, farm in shape of round pen and fence box based on the horses' height and number. Our fence panel is produced under professional cut short machine, welded team and packing technology. It is widely used in New Zealand, Australia, America, Western countries and so on.

Fence panel specification:

Pipe style Round pipe Oval pipe Square pipe
Material Hot dipped galvanized steel pipe
Finishing (zinc coating) More than 15 microns
Height × Length 1.6m × 2.1/2.2/2.5m, 1.8m × 2.1/2.2/2.5m, 1.7m × 2.1/2.2/2.3m 1.8m × 2.4m, 1.8m × 3.37m
Vertical pipe 32O.D × 1.6mm
42O.D × 1.6mm
50 × 50 RHS × 1.6mm
40 × 40 RHS × 1.6mm
50 × 50 RHS × 1.6mm
40 × 40 RHS × 1.6mm
Horizontal pipe 30 × 60mm × 1.6mm
40 × 80mm × 1.6mm
40 × 120mm × 1.6mm
Horizontal rails 3-7
Welding Bars and post brackets are fully welded, each weld point is protected with epoxy paint
Packing In steel pallet or in bulk

Accessories specification:

  • Pins and lugs: lugs includes double lug and single lug.
  • Double lug size: 40mm wide × 120mm high with two 16 × 25mm holes.
  • Single lugs size:
    • 40mm wide and 60mm high.
    • with two 16 × 25mm holes.
  • Pins size: 14mm diameter and 170mm long.

Panel type A: round pipe

1.8m high 6 rails round pipe drawing

Galvanized 6 rails round pipe horse fence panel drawing

6 rails and 6 round pipe fence panels make a fence box

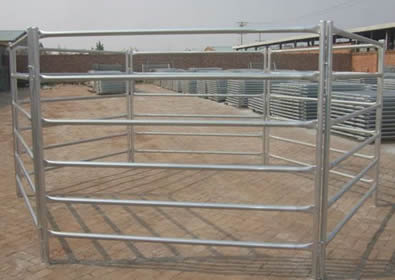

Galvanized round pipe horse fence panel

Panel type B: oval pipe

1.8m high 6 rails oval pipe horse fence pane drawing

Galvanized 6 rails oval pipe horse fence panel drawing

1.8m high 5 rails oval pipe horse fence pane drawing

Galvanized 5 rails oval pipe horse fence panel drawing

5 rails galvanized horse fence panel in stock

5 rails galvanized oval pipe horse fence panel

Panel type C: square pipe

1.8m high 6 rails square pipe horse fence pane drawing

Galvanized 6 rails square pipe horse fence panel drawing

1.6m high 5 rails square pipe horse fence pane drawing

Galvanized 5 rails square pipe horse fence panel drawing

6 rails galvanized horse fence panel in stock

6 rails galvanized square pipe horse fence panel

Drawing example:

A 1.8m square pipe panel with 6 rails drawing

Feature

  1. Portable: simple and fast to install make the panel quite flexible.
  2. Strong:
    • High quality steel pipe and 360 degree fully welded make the fence very strong.
    • High zinc or PVC coated makes the fence durable.
    • Chain lock can make the fence panel together stable.
    • Highly stand the crash of horse.
  3. Protection:
    • Connected with welded bracket lugs and join pins. No need to dig holes and lay foundations, protect the grassland.
    • No sharp spearhead, smoothly welded. Different spacing of each horizontal rail avoids the horse fence head and feet damaged.
  4. Anti-rust: hot galvanized pipe makes the fence difficult to rust and the vertical rails are welded with metal cap to prevent rust inside.
  5. Maintenance: our hot dipped galvanized horse fence panel can apply for 10-15 years. During the application, if the fence panel paint is removed carelessly you can recover it simply and quickly. Besides the fence panel is not easy to be damaged by horse. The fence panel should keep away the chemistry and alkaline materials and the acid rain.

Image details:

Two fence panel are locked by chain lock and details

Galvanized horse fence chain lock details

Horizontal and vertical rail show the zinc coating smooth surface

Galvanized horse fence zinc coating detail

Metal rain cap show the fully welded

Galvanized horse fence metal cap is fully welded

Two fence panel is connected by pins and detail

Fence panel is connected by pin

Application:

The fence panel is widely used in the pasture, especially for the horse, cattle and other large animals. It can be used to separate the animals and make square and round pen.

6 rails oval pipe fence panel used as a pen for horse

Galvanized 6 rails oval pipe fence panel encircles the horse

7 rails round pipe fence panel makes a box for horse

7 rails round pipe panel encircles a box for horse

4 rails galvanized square pipe panel used as a temporary pen for horse

4 rails square pipe panel encircles temporary pen

13 galvanized fence panels and gate makes round pen at pasture

Fence used as round pen

Packing and loading

Fence panel:

  1. It has the soft sponge at the bottom of pallet to prevent the fence panel be damaged.
  2. It has plastic film and 6 carton papers to prevent the plastic bandage damage the panel.
  3. It has 4 plastic bandages to make the fence panel more strong.
  4. The fence panel can also be packed with steel plate or in bulk.

Accessories:

Pins and lugs are packed in plastic bags then packed in carton boxes.

Two pallets galvanized fence panel packed with steel plate

Fence packed with steel plate

fence panel in bulk to dry the paint

Fence air dry the paint

a pallet galvanized fence panel packed with steel plate on container

Fence panels contained

Many galvanized round pipe gates in bulk in container

Gate contained in bulk

One galvanized double lugs

Galvanized double lugs

One galvanized single lug

galvanized single lugs

One galvanized fence panel pin

Galvanized pin

One galvanized double lug and one single lugs connected by pin

Lugs are connected by pin
