Horse panel & gate with or without feeding place

Our horse fencing panel is ideal for raising horses, mobile stables, livestock round pen and temporary fence box and so on. It's made of oval and round pipe, this horse fence panel is finished with galvanized and coated powder famous DUPONT and AKZONOBEL powder. The process is professional, it includes the cut short machine, shape make machine, welded team, professional quality control team, as well as the packing system. The fencing includes the fence panel (with feeding place or not) and fence gate (with feeding place or not). 1-2 central rails to support the fence. It is ideal for horse panel box and feed fence panel.

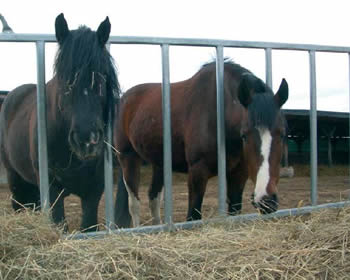

Two horses eating pasture by oval pipe galvanized horse panel

Oval pipe galvanized horse panel with feeding place

Horse fence panel:

  • Panel with feeding place
    • Material: galvanized pipe.
    • Finishing: hot-dipped galvanized.
    • Oval pipe size: 50 × 30 × 1.5mm.
    • Round pipe size: 32 × 1.2mm.
    • Clearance between pipe: 20cm.
    • Height: 1.6m (with safety arch 1.75m).
    • Length: 2.4m, 3.0m, 3.3m, 3.5m, 3.6m.
    • Feeding spacing: 30-35cm.
    • Vertical Rail number: 8-11.
    • Horizontal Rails: 3.
  • Panel Without feeding place
    • Material: galvanized pipe.
    • Finishing: galvanized or powder coated.
    • Oval pipe size: 50 × 30 × 1.5mm.
    • Round pipe size: 32 × 1.2mm.
    • Clearance between pipe: 20cm.
    • Height: 1.4m( 5 rails ) 1.6m ( with safety arch 1.75m ) and 2.2m with gate.
    • Length: 2.0m, 2.4m, 3.0m, 3.3m, 3.5m 3.66m.
    • Horizontal Rail number: 5-6.
    • Vertical rails number: 3 or 4.
    • Central brace number: 0-2.
    • Weight: 30-50kg.
Galvanized horse panel without feeding place

6 rails galvanized horse panel without feeding place

Green powder coated horse panel box without feeding place

6 rails powder coated horse panel box without feeding place

Horse panel gate

    Three galvanized panels and gate make box with feeding place

    6 rails galvanized horse panel makes box with feeding place

  • Gate with feeding place
    • Material: galvanized pipe.
    • Finishing: galvanized then powder coated.
    • Round Pipe size: 32 × 1.2mm.
    • Oval Pipe size: 50 × 30 × 1.5mm.
    • Clearance between pipe: 20cm.
    • Panel Height: 1.4m (5 rails), 1.6m.
    • Opening height: 2.2m.
    • Length: 2.4m, 3.0m, 3.3m, 3.5m, 3.6m.
  • Gate without feeding place
    • Material: galvanized pipe.
    • Finishing: galvanized then powder coated.
    • Round Pipe size: 32 × 1.2mm.
    • Oval Pipe size: 50 × 30 × 1.5mm.
    • Clearance between pipe: 20cm.
    • Height: 2.2m.
    • Length: 2.4m, 3.0m, 3.3m.
White powder coated round pipe horse panel box without feeding place

6 rails white powder coated horse panel box without feeding place

Galvanized horse panel without feeding place

6 rails galvanized horse panel without feeding place

Details of fence panel:

Galvanized horse panel safe arch fully welded

Galvanized horse panels safe arch details

Two red panels safe arch connected and details

Horse panels safe arches connected details

Two red panels feet connected with chain lock and details

Horse panels feet connected details

Feature:

  1. Anti crush, galvanized and powder coated.
  2. 5-6 bars and 1-2 central rails to support the fence.
  3. Large and comfortable eating place.
  4. Fixed by the chain lock, no hook, lug and pins.
  5. Quick to build the fence and fence box.
  6. The panels with gate make a spring-loaded latch for secure closure of the gates. The doors can be opened both inward and outward.
  7. Feet in runners shape ensure good stability and allow for easy sliding of the panel under load, so injuries are avoided.
  8. Every smooth surface, no sharp spearhead at the edge.
  9. Protect the environment, not damage the grass and earth.

Attention:
The galvanized and powder coated fence panel should handle carefully in case that the paint is remove. Keep away the chemistry material.

Accessories
Chain lock packed in plastic bags then packed in carton boxes

Application:

  1. Protect the pasture:
    Three or more fence panel make a box, put the pasture in it to prevent the horse stamping the pasture and save the forage.
  2. Temporary box:
    Three fence panels and one gate to protect the horse from damaging.
  3. Make a pen
    Large numbers of fence panels make a pen to raise the horse for break.
  4. Feeding conveniently
    Used indoor to pen the horse and it is convenient for feeding.
Red powder coated panel makes pen for horse at ranch

Red horse panel makes pen for horse

5 galvanized panels and 1 gate make temporary box at ranch

Galvanized panels and gate used as temporary box

Three panels connected make a box to protect pasture

Horse panels protects pasture

Three galvanized panels and 1 gate make temporary box for horse

Galvanized panels and gate used as temporary box for horse

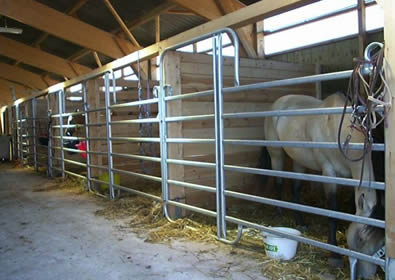

Horse panel gate used with wood wall for one horse

Galvanized horse panel gate used indoor for horse

Galvanized horse panel make pen for horse at ranch

Galvanized panels makes pen for horse

Fence panel packing:

  1. It has the soft sponge at the bottom of pallet to protect the fence panel be damaged.
  2. Plastic film and it has carton papers to prevent the plastic bandage damage the panel.
  3. It has plastic bandages to make the fence panel more strong.
  4. The fence panel can also be packed in bulk.
Many galvanized horse gates packed with steel plate

Galvanized panel gates packing

Many galvanized horse panels packed with steel plate

Galvanized horse panel packing

Many horse panels in stock

Galvanized horse panel in stock
